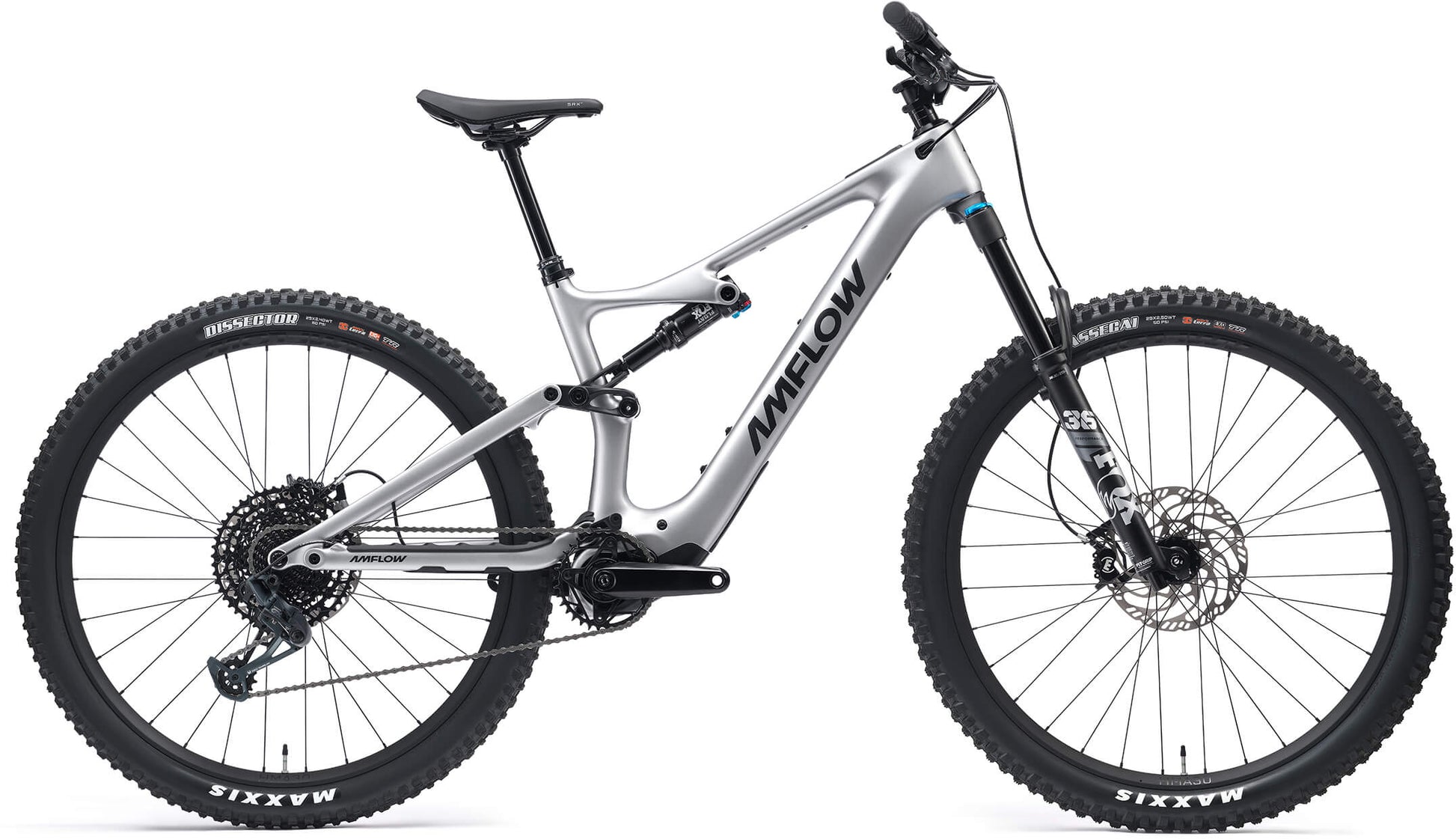

AMFLOW PL CARBON 2025

Amflow PL Carbon (2025): a next-generation full-suspension eMTB designed to deliver serious power, control, and efficiency on demanding trails. Built around the lightweightAmflow PL carbon framewith150mm rear travel, it pairs a2026 FOX 36 Performance fork,2026 FOX Float Performance rear shock, and DJI’sAvinox M1 Drive Unit(105 N·m) with an800Wh integrated battery. TheSRAM Eagle 70 Transmission drivetrain,Avinox SL crank, andMaxxis Assegai / Dissector tyrescomplete a package built for aggressive all-mountain and enduro riding.

Frame: Amflow PL Carbon Frame, 150mm rear travel, compatible with 27.5" and 29" rear wheels

Fork: 2026 FOX 36 Performance, 160mm travel, GRIP Damper, 15×110mm, 44mm rake

Rear Shock: 2026 FOX Float Performance, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Motor: Avinox M1 Drive Unit, 105 N·m torque

Battery: Avinox 800Wh Integrated Battery

Display: Avinox 2-inch OLED Control Display

Controllers: Avinox Wireless Controllers, right and left sides

Charger: Avinox Fast Charger, 12A / 508W

Rear Derailleur: SRAM Eagle 70 Transmission Derailleur

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Shifter: SRAM Eagle 70 Transmission Shifter | Single Click

Cassette: SRAM XS-1270 Eagle Transmission 10–52T

Chain: SRAM Eagle 70 Transmission Flattop Chain

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Wheels: Amflow HMA-30 alloy rims, 29", 30mm internal width, 32H, tubeless ready; SAPIM E-Light J-bend spokes

Hubs: Alloy hubs, 2-bearing 15×110mm front / 4-bearing 148×12mm rear, 32H, 6-bolt, 21T rear

Tyres: Front — Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR; Rear — Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar: Amflow Enduro Alloy, 35mm rise, 800mm wide, 5° upsweep, 9° backsweep

Grips: Amflow Enduro Grips

Stem: Amflow Enduro one-piece CNC stem, 35mm length, 35mm clamp

Saddle: Selle Royal SRX Plus

Seatpost: KS Rage-i dropper — M: 150mm; L: 170mm; XL/XXL: 190mm
