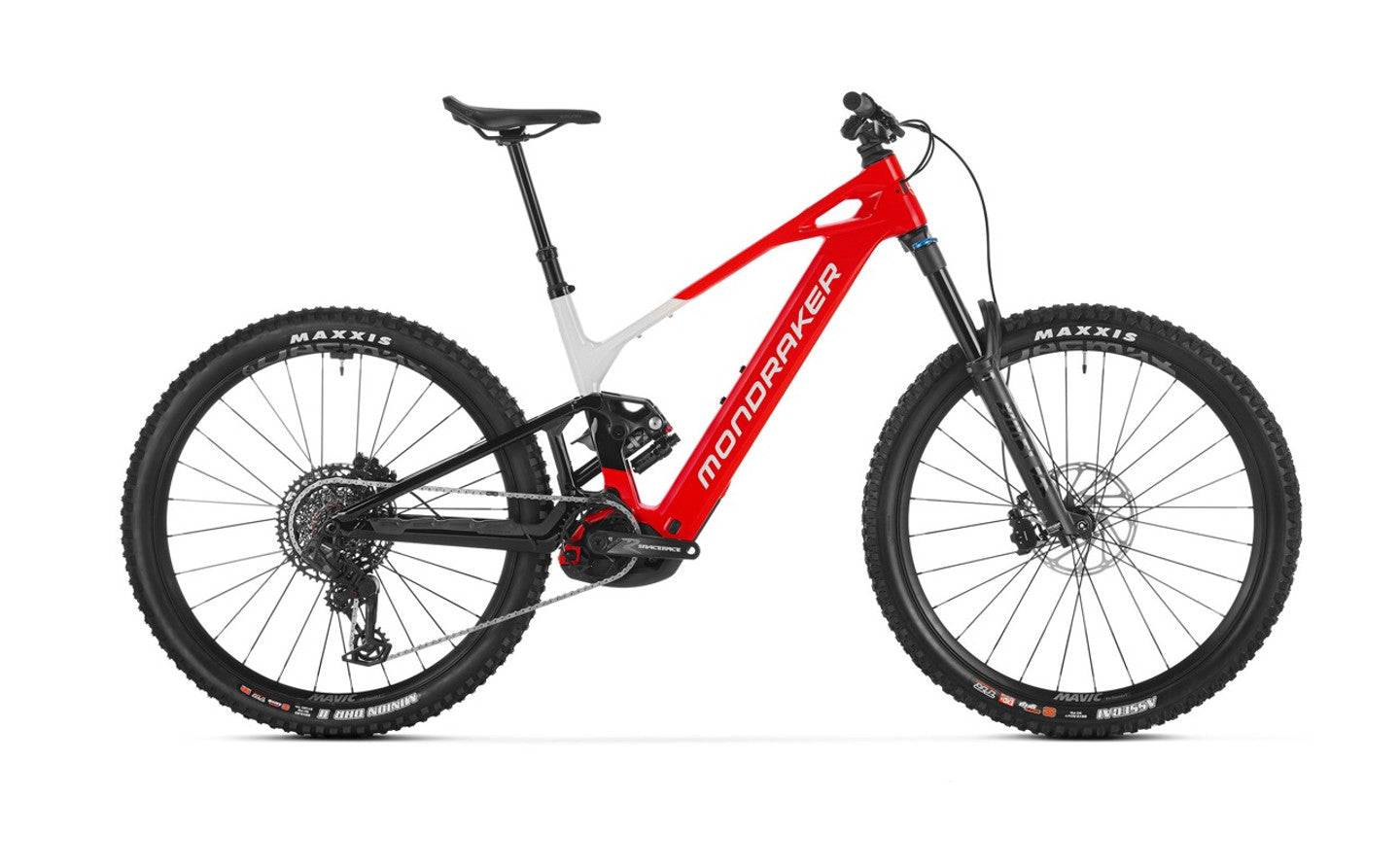

MONDRAKER CRAFTY CARBON R 2026

It’s hard to pick a favourite, isn’t it! The thrill of a Crafty Carbon isn’t just about the power, travel or range. No one’s denying this lineup is a true statement of performance: Bosch CX Gen5 motor, a removable 800Wh battery, and now a seamlessly integrated Kiox 400 display flush-mounted in the top tube. But don’t forget the colours! Because each one tells a different story.

Frame Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer

Fork Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle Ergon SM-10

Front brake Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust

Rims Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes Mavic J-bend double butted, contactless lacing

Front hub Mavic, Boost 15x110mm, IS 6 bolts

Rear hub Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

Front tire Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

Rear tire Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

Crankset Race Face Aeffect-R ebike, 160mm

Rings Sram Eagle 34T T-Type, direct mount, steel, CL55

Chain Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur Sram S1000 Eagle AXS T-Type, 12s

Shift levers Sram Eagle AXS Pod MMX, 12s

Casette Sram XS-1270, 10-52T, T-Type, 12s

Weight 24,5 kg

Display Kiox 400C / Bosch Mini Remote

Motor Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery Bosch Powertube 800Wh
