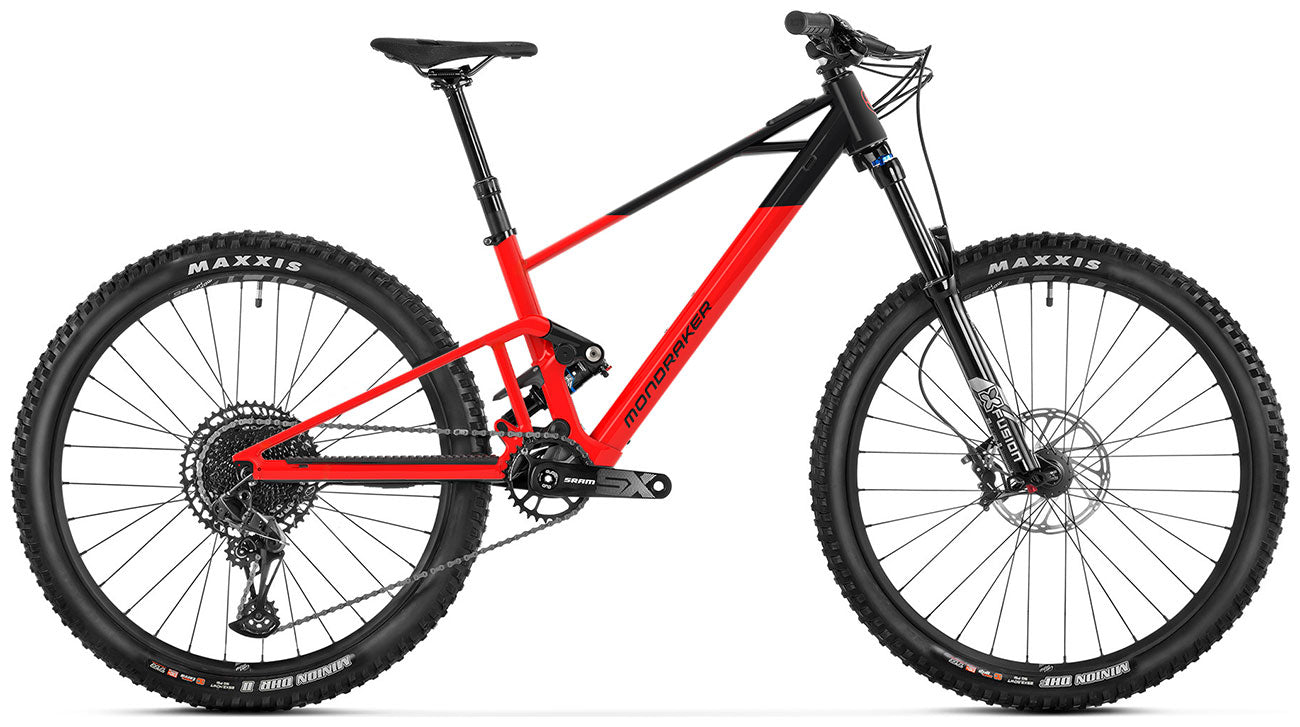

MONDRAKER F-PLAY 26 2026

At Mondraker we take our kids bikes very seriously. So seriously that we wanted to create an all-new KIDS range that was so much fun, so capable, so high-tech that it would be hard to tell apart from our adult bikes when out on the trails with your family. That’s what we were going for, and that’s what we’ve done with the F-Play.

FRAME F-Play 26 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, 1x drivetrain compatible

SIZES One size: 350mm

REAR SHOCK X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings

SHOCK SETTINGS A-Tune light compression

FORK X-Fusion Slant RC 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

HEADSET Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

STEM Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

HANDLEBAR MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS Onoff Beehive, 1lock-on, 135mm

SEATPOST X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 125mm

SADDLE SDG Fly JR

FRONT BRAKE Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads

REAR BRAKE Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads

BRAKE LEVER Shimano MT501, servo wave, alloy lever

RIMS MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes

SPOKES CN round stainless steel

FRONT HUB DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts

REAR HUB Mahle-Ebikemotion X-30, HG freehub

FRONT TIRE Maxxis Minion DHF 26x2.5, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead

REAR TIRE Maxxis Minion DHR II 26x2.4, Tubeless ready, EXO Protection, 60TPI, folding bead

CRANKSET Prowheel DMJ-CR094S-TT, Direct mount chainring, 155mm

RINGS 30T, steel

BOTTOM BRACKET Prowheel PW-MBB73 73mm

PEDALS SDG Slater JR

CHAIN Shimano Deore M6100, 12s, Quick-link

REAR DERRAILLEUR Shimano Deore M6100, SGS, Shadow+, 12s

SHIFT LEVERS Shimano Deore M6100, Rapid Fire Plus, 12s

CASSETTE Sunrace CSMZ600, 11-51T

MOTOR Mahle X-30, Drive Unit

BATTERY Mahle IX250Wh

DISPLAY iWoc ONE Head Unit

DERAILLEUR HANGER Mondraker M077

WEIGHT 17,0 kg
