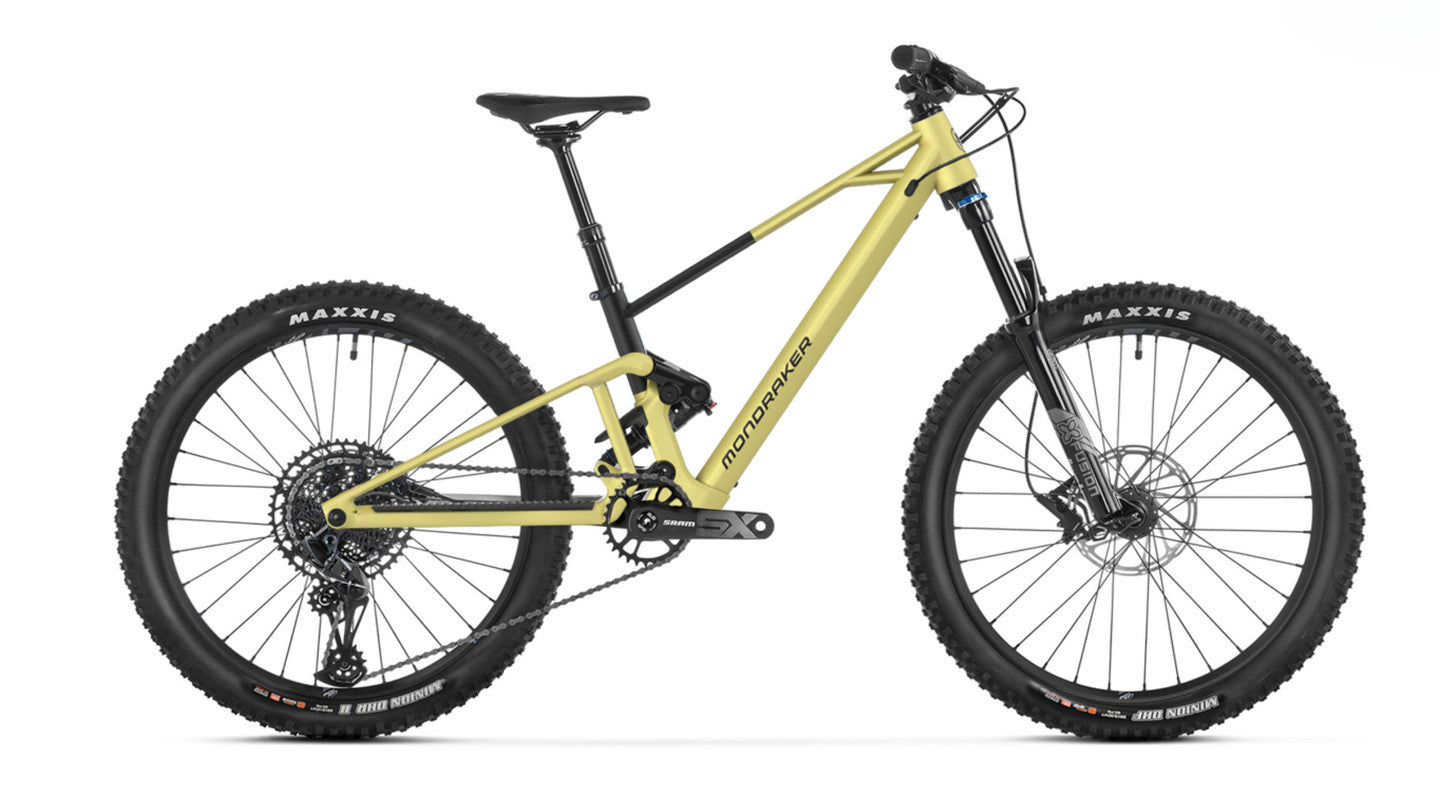

MONDRAKER F-TRICK 24 2026

Frame F-Trick 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, 12x148mm rear axle, UDH, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design.

Sizes One size: 300mm

Rear shock X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings

Shock settings A-Tune light compression

Fork X-Fusion Slant RC 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Headset Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips Onoff Beehive, 1lock-on, 135mm

Seatpost X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm

Saddle SDG Fly JR

Front brake Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads

Rear brake Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads

Brake lever Shimano MT501, servo wave, alloy lever

Rims MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes CN round stainless steel

Front hub DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts

Rear hub DA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub

Front tire Maxxis Minion DHF 24x2.4, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead

Rear tire Maxxis Minion DHR II 24x2.3, Tubeless ready, EXO Protection, 60TPI, folding bead

Crankset Prowheel DMJ-CR094S-TT, Direct mount chainring, 150mm

Rings 30T, steel

Bottom bracket Prowheel PW-MBB73 73mm

Pedals SDG Slater JR

Chain Shimano Deore M6100, 12s, Quick-link

Rear derrailleur Shimano Deore M6100, SGS, Shadow+, 12s

Shift levers Shimano Deore M6100, Rapid Fire Plus, 12s

Casette Shimano Deore M6100, 10-51T Hyperglide+, 12s

Derailleur hanger UDH

Weight 13,8 kg
