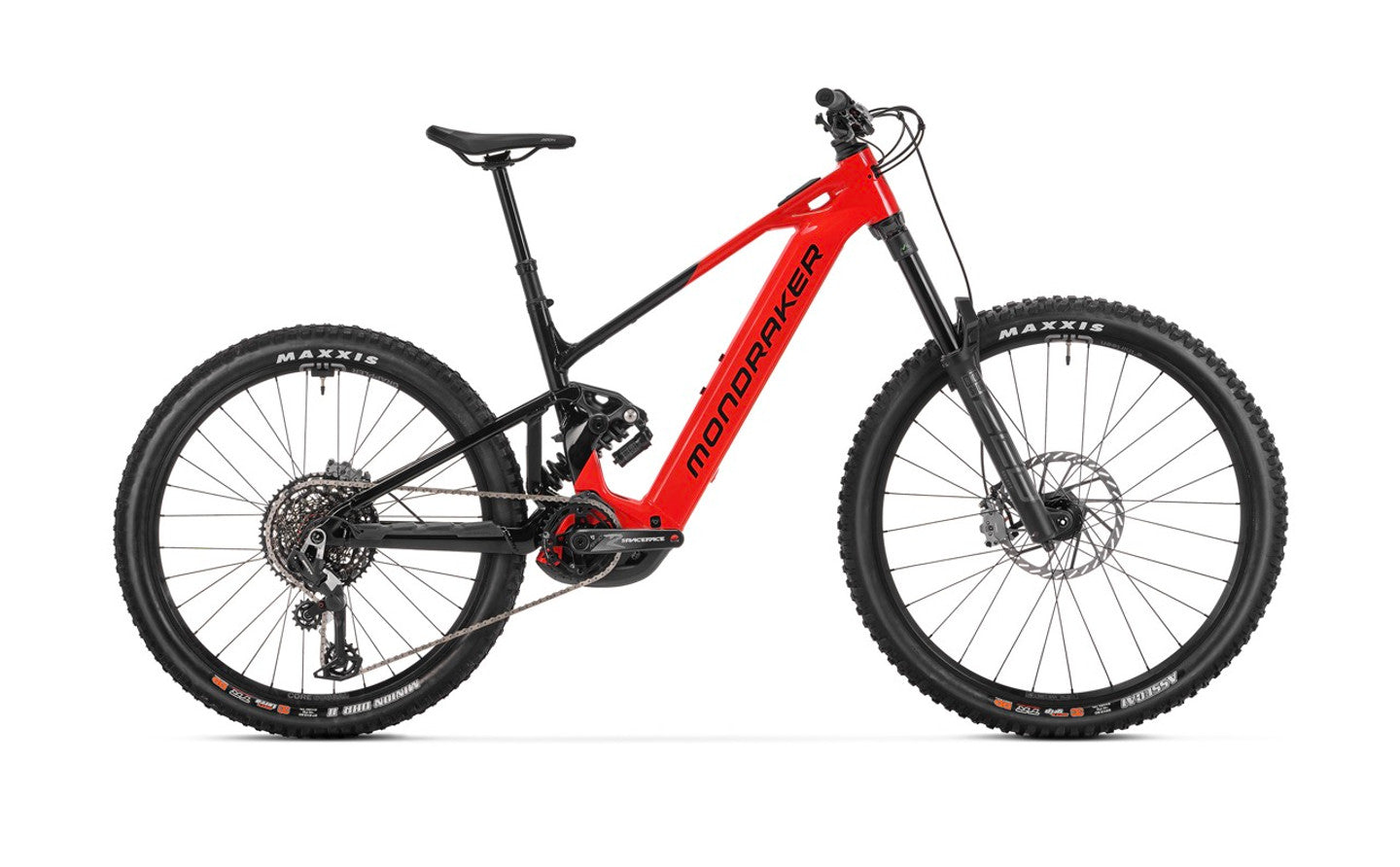

MONDRAKER LEVEL R 2026

The Level R is your ticket to another level of enduro.As the most accessible model in the new range, it features the fifth-generation Bosch Performance Line CX motor, now delivering up to 750W and 100Nm of torque (with the latest software update), paired with a massive 800Wh battery, which is easily removable via the sleek carbon access panel on the downtube.

Frame Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers

Sizes S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings C26 compression, R23 rebound. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs

Fork RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload

Headset Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle FIZIK Terra Aidon X5 145mm

Front brake Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

Rims e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear

Spokes e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Front hub e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub

Front tire Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

Rear tire Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

Crankset Race Face Aeffect ebike, All sizes: 160mm

Rings Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

Chain Sram 70 Eagle T-Type, 12s, Powerlock

Rear derrailleur Sram 90 Eagle T-Type, 12s

Shift levers Sram 90 Eagle, 12s, T-Type Actuation, single click

Casette Sram XS-1270, 10-52T, T-Type, 12s

Weight 26,7 kg

Display Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery Bosch Powertube 800Wh
