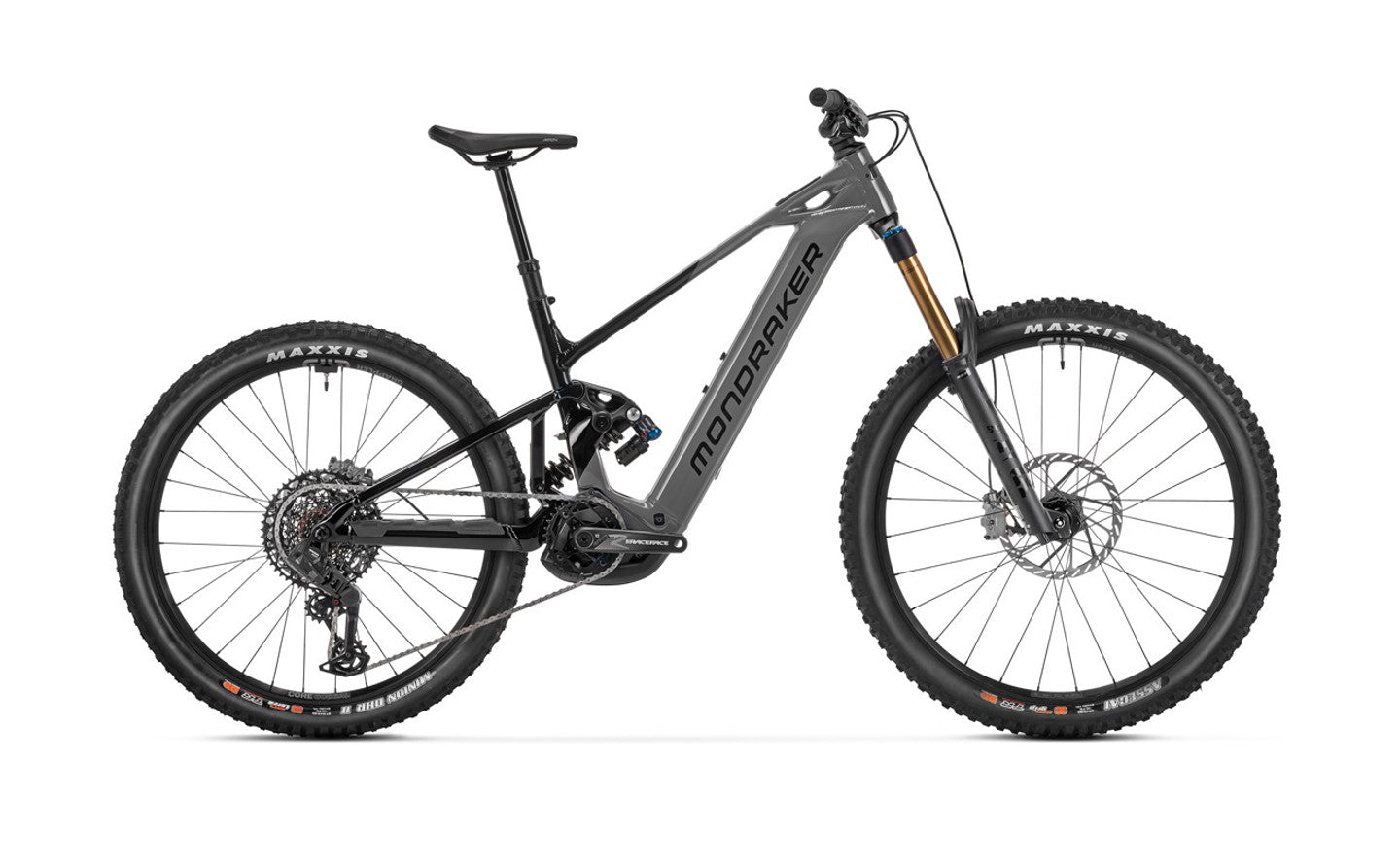

MONDRAKER LEVEL RR 2026

For riders looking for something a little more high-end, the Level RR delivers. It keeps the same updated Bosch CX Gen 5 motor and 800Wh removable battery, but steps things up with more premium components:

• Fox 38 Kashima Factory Grip X2 fork

• SRAM Maven Bronze brakes

• SRAM S1000 Eagle AXS T-Type drivetrain (10-52T, 34T chainring)

• Maxxis Assegai 29"x2.6" WT (front) / Minion DHR II 27.5"x2.6" WT (rear)

Frame Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers

Sizes S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings CL50 compression, RL40 rebound, Rezi LML, Bleed 1,1, B60. Spring rate:S size 350 lbs, M size 400 lbs, size ML 450 lbs, L size 500 lbs, XL size 500 lbs

Fork Fox 38 29 Float GRIPX2 Factory Kashima, 180mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle FIZIK Terra Aidon X5 145mm

Front brake Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

Rims e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear

Spokes e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Front hub e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub

Front tire Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

Rear tire Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

Crankset Race Face Aeffect ebike, All sizes: 160mm

Rings Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur Sram S1000 Eagle AXS T-Type, 12s

Shift levers Sram Eagle AXS Pod MMX, 12s

Casette Sram XS-1270, 10-52T, T-Type, 12s

Weight 26,9 kg

Display Kiox 400C / Bosch Mini Remote

Motor Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery Bosch Powertube 800Wh
