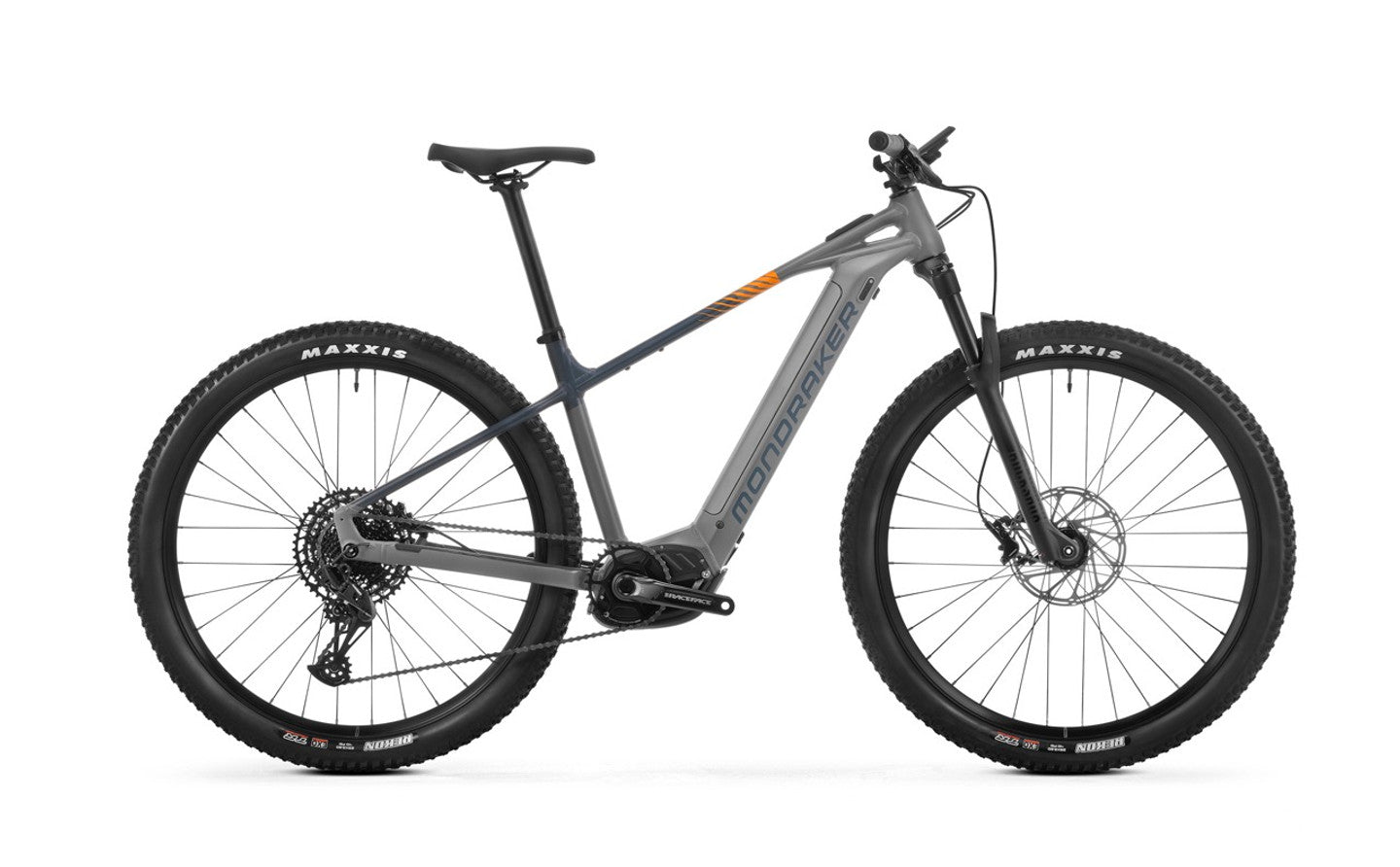

MONDRAKER PRIME 2025

It’s easier because Prime keeps things simple. The reliability of an aluminium frame, perfectly balanced with the latest version of Bosch’s CX motor and components to instil confidence on your rides.Prime might be your first ebike but it certainly won’t be your last.Prime and Prime R come with 625Wh and 750Wh batteries respectively, 120mm Rockshox forks and the latest generation of ONOFF components including the Pija dropper post on the Prime R.You only have to choose your colour and your build as the fun is already guaranteed.

Frame Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor

Sizes XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm

Fork RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips Onoff Beehive, 1lock-on, 135mm

Seatpost Onoff S3 0-R, diameter 31.6mm, length 400mm

Saddle MDK ebike black

Front brake Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Rims Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes Mavic J-bend double butted, contactless lacing

Front hub Mavic, Boost 15x110mm, IS 6 bolts

Rear hub Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

Front tire Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Rear tire Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Crankset Race Face Aeffect-R ebike, 160mm

Rings Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain Sram SX Eagle, 12s, Powerlock

Rear derrailleur Sram SX Eagle,12s

Shift leversSram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

Casette Sram PG-1210, 11-50T, 12s

Derailleur hanger Sram UDH

Weight 22,7 kg

Display Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

Motor New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery Bosch Powertube 625Wh
