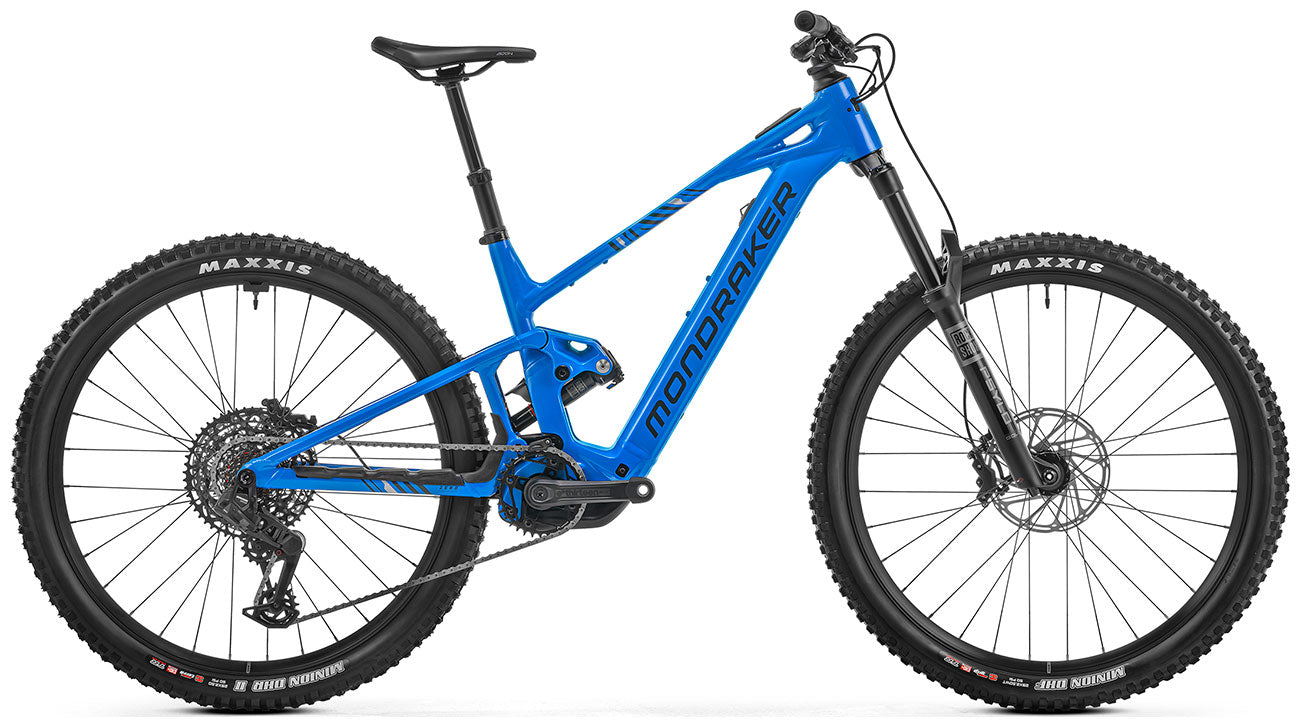

MONDRAKER SLY R 2025

The R build offers RockShox suspension with a Psylo Gold RC 160mm fork paired with a Rockshox Deluxe Select+ shock; SRAM 4 piston DB8 Stealth brakes to keep things firmly under control, and Mavic 29”, 30mm E-CrossRide 29 wheels for reliability and strength. Our component brand ONOFF supplies the handlebar, grips and stem from its S3 range, while the S6 range offers up the Pija seatpost in lengths from 140mm to 210mm depending on frame size. The SLY R comes in the spectacular Marlin Blue

Frame 6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Sizes S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear Shock Rockshox Deluxe Select+, 185x55mm, Trunnion top mount, 30x8mm bottom bushings

Shock Settings L compression, digressive rebound, 4 tokens

Fork Rockshox Psylo Gold RC, 160mm, 3 Position, Debon Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips Onoff Forest, CNC lock-on, 135mm

Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle Fizik Terra Aidon X5 145mm

Front Brake Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear Brake Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake Lever Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

Rims Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes Mavic J-bend double butted, contactless lacing

Front Hub Mavic, Boost 15x110mm, IS 6 bolts

Rear Hub Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

Front Tire Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead

Rear Tire Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead

Crankset E.13 Helix Core E*Spec Plus, All sizes: 160mm

Rings Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain Sram GX Eagle T-Type, 12s, Powerlock

Rear Derrailleur Sram S1000 Eagle AXS T-Type, 12s

Shift Levers Sram Eagle AXS Pod MMX, 12s

Cassette Sram XS-1270, 10-52T, T-Type, 12s

Motor Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery Bosch Compact Powertube 400Wh

Display Purion 400 / Bosch Mini Remote / Bosch System Controller

Weight 20,9 kg
